How to Redirect All DNS Queries to OPNsense

{{< notice “warning” >}} Outdated {{< /notice >}}

My OPNsense installation runs AdGuard Home to filter advertisements and malicious websites, but many phone and computer applications hard-code external DNS servers such as Google DNS or 1.1.1.1. This can bypass AdGuard Home.

The following rule redirects all DNS queries to AdGuard Home (local DNS). Even when a client chooses another DNS server, queries sent over port 53 are redirected to OPNsense. This reduces DNS leaks and makes the local policy effective.

{{< notice “tip” >}} See the AdGuard Home installation guide. {{< /notice >}}

1. Open Firewall → NAT → Port Forward

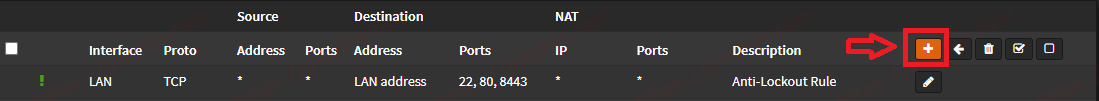

2. Click + to add a rule

3. Configure the rule

Field	Selection	Notes
Interface	LAN
Protocol	TCP/UDP
Destination / Invert	Checked
Destination	LAN address	Select the network to redirect, such as LAN or Guest.
Destination port range	DNS to DNS
Redirect target IP	Single host or Network: 192.168.1.1	Replace with the OPNsense LAN address.
Redirect target port	DNS
NAT reflection	Disable

Leave fields not listed above at their defaults.

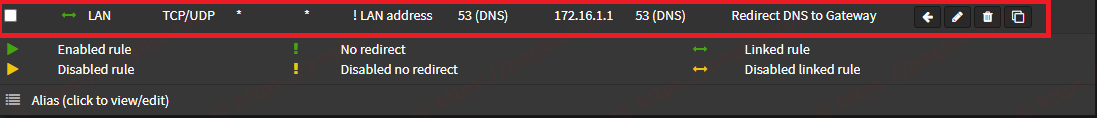

4. Click Save and then Apply Changes

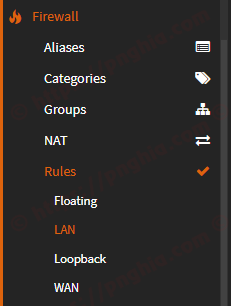

5. Open Firewall → Rules → LAN

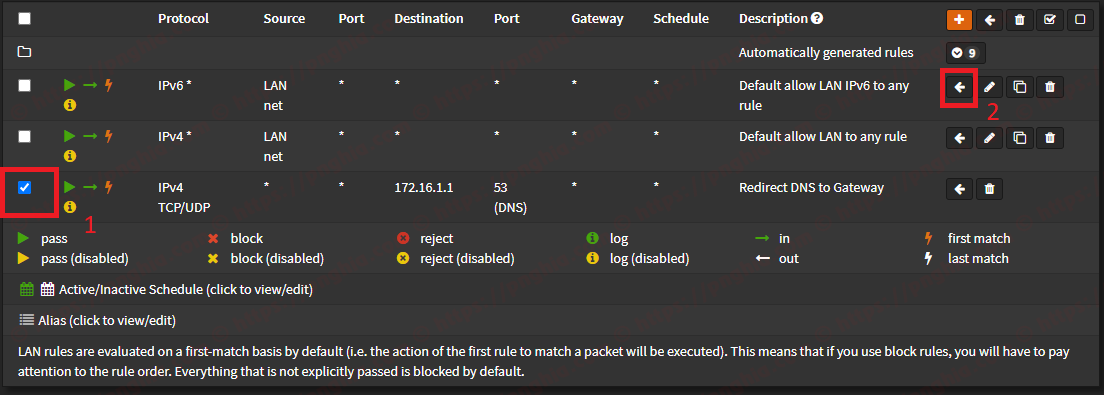

6. Move the new rule above the default LAN allow rule

Click Apply Changes.

7. Test the result

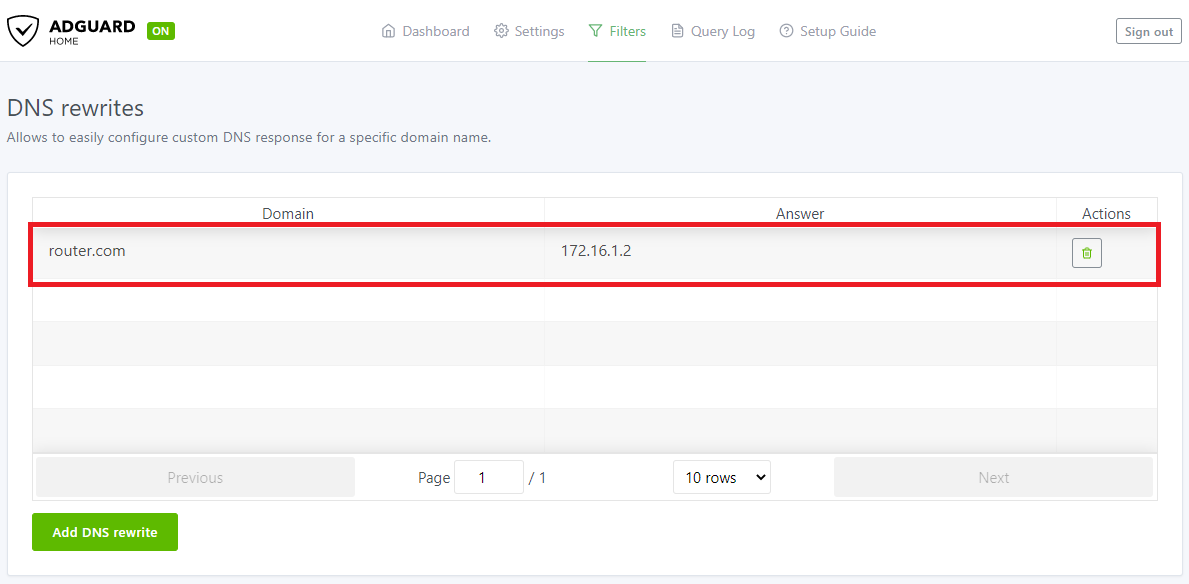

For testing, I configured an AdGuard Home DNS rewrite for router.com to return 172.16.1.2. {{< collapse “Screenshot” >}} {{< /collapse >}}

On a Windows PC:

ipconfig /flushdnsnslookup router.com 8.8.8.8

Although the client asks 8.8.8.8, OPNsense redirects the DNS query to AdGuard Home, so the result should be 172.16.1.2.

Good luck 😉
