[OpenHAB] Xiaomi LYWSD03MMC Temperature and Humidity Sensor with ESPHome on ESP32-C3

Nghia Phan
Nghia Phan
Update:
3 phút
Updating...
Language: Vi

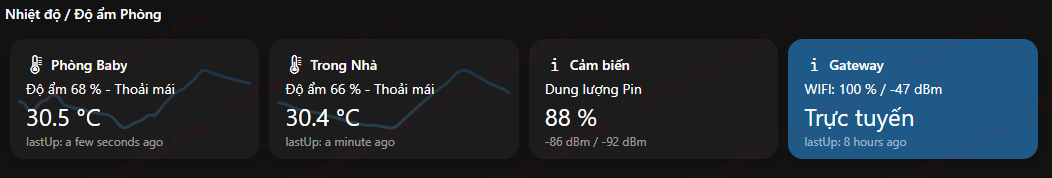

Post img header

Requirements

  • OpenHAB version: 4.3.3
  • The MQTT binding is installed.
  • LYWSD03MMC sensors — see Shopee . Flash them with the ATC_MiThermometer custom firmware ( guide ).
  • An ESP32 or ESP32-C3 SuperMini. For an ESP32-C3 SuperMini, a model with an antenna is recommended (see Shopee ).

Build with ESPHome

  • See the ESPHome project here .
  • Install ESPHome on your PC using this guide .
  • The following configuration sends data to the MQTT broker.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

esphome:
  name: lywsd03mmc-mqtt
  friendly_name: LYWSD03MMC to MQTT
  min_version: 2025.3.2
  name_add_mac_suffix: true
  platformio_options:
    board_build.f_flash: 40000000L
    board_build.flash_mode: dio
    board_build.flash_size: 4MB

esp32:
  board: esp32-c3-devkitm-1
  framework:
    type: esp-idf
    sdkconfig_options:
      CONFIG_BT_BLE_42_FEATURES_SUPPORTED: y
      CONFIG_BT_BLE_50_FEATURES_SUPPORTED: n

logger:
  level: INFO

ota:
  - platform: esphome
    password: "******"

wifi:
  ssid: "WIFI SSID"
  password: "password"

mqtt:
  broker: "192.168.0.4"
  username: "username"
  password: "password"
  discovery: false
  discover_ip: false

esp32_ble_tracker:
  scan_parameters:
    active: false

sensor:

  - platform: ble_rssi
    mac_address: aa:aa:aa:aa:aa:aa
    name: "pNgu BLE Thermometer RSSI"

    - platform: ble_rssi
    mac_address: bb:bb:bb:bb:bb:bb
    name: "pKhach BLE Thermometer RSSI"

  - platform: atc_mithermometer
    mac_address: "aa:aa:aa:aa:aa:aa"
    temperature:
      name: "pNgu Temperature"
    humidity:
      name: "pNgu Humidity"
    battery_level:
      name: "pNgu Battery Level"

  - platform: atc_mithermometer
    mac_address: "bb:bb:bb:bb:bb:bb"
    temperature:
      name: "pKhach Temperature"
    humidity:
      name: "pKhach Humidity"
    battery_level:
      name: "pKhach Battery Level"

  - platform: wifi_signal
    name: "WiFi Signal dB"
    id: wifi_signal_db
    update_interval: 300s

  - platform: copy
    source_id: wifi_signal_db
    name: "WiFi Signal Percent"
    filters:
      - lambda: return min(max(2 * (x + 100.0), 0.0), 100.0);
    unit_of_measurement: "Signal %"
  • Line 24 configures the OTA update password.
  • Lines 27-28 configure Wi-Fi.
  • Lines 31-33 configure the MQTT broker.
  • Lines 44, 48, 52, and 61 contain the sensor Bluetooth MAC addresses.

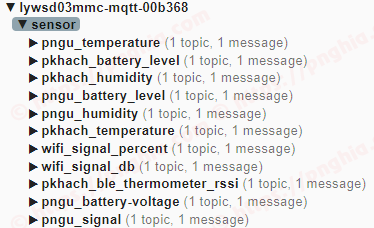

Check the MQTT broker to confirm that it has received the sensor data.

Configure the Things in OpenHAB

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

UID: mqtt:topic:17653025f5:lywsd03mmc
label: LYWSD03MMC Sensors
thingTypeUID: mqtt:topic
configuration: {}
bridgeUID: mqtt:broker:17653025f5
channels:
  - id: pKhach_Temperature
    channelTypeUID: mqtt:number
    label: pKhach Temperature
    description: ""
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pkhach_temperature/state
  - id: pKhach_Humidity
    channelTypeUID: mqtt:number
    label: pKhach Humidity
    description: ""
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pkhach_humidity/state
  - id: pKhach_Battery_Level
    channelTypeUID: mqtt:number
    label: pKhach Battery Level
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pkhach_battery_level/state
  - id: pNgu_Temperature
    channelTypeUID: mqtt:number
    label: pNgu Temperature
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pngu_temperature/state
  - id: pNgu_Humidity
    channelTypeUID: mqtt:number
    label: pNgu Humidity
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pngu_humidity/state
  - id: pNgu_Battery_Level
    channelTypeUID: mqtt:number
    label: pNgu Battery Level
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pngu_battery_level/state
  - id: pKhach_BLE_RSSI
    channelTypeUID: mqtt:number
    label: pKhach BLE RSSI
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pkhach_ble_thermometer_rssi/state
  - id: pNgu_BLE_RSSI
    channelTypeUID: mqtt:number
    label: pNgu BLE RSSI
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/pkhach_ble_thermometer_rssi/state
  - id: LYWSD03MMC_WIFI_Signal_Level_dB
    channelTypeUID: mqtt:number
    label: LYWSD03MMC Sensors WIFI Signal Level dBm
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/wifi_signal_db/state
  - id: LYWSD03MMC_WIFI_Signal_Level_Percent
    channelTypeUID: mqtt:number
    label: LYWSD03MMC Sensors WIFI Signal Level Percent
    configuration:
      stateTopic: lywsd03mmc-mqtt-00b368/sensor/wifi_signal_percent/state
  - id: LYWSD03MMC_Sensors_Status
    channelTypeUID: mqtt:string
    label: LYWSD03MMC Sensors Status
    configuration:
      stateTopic: lywsd03mmc-mqtt/status
